What this review covers

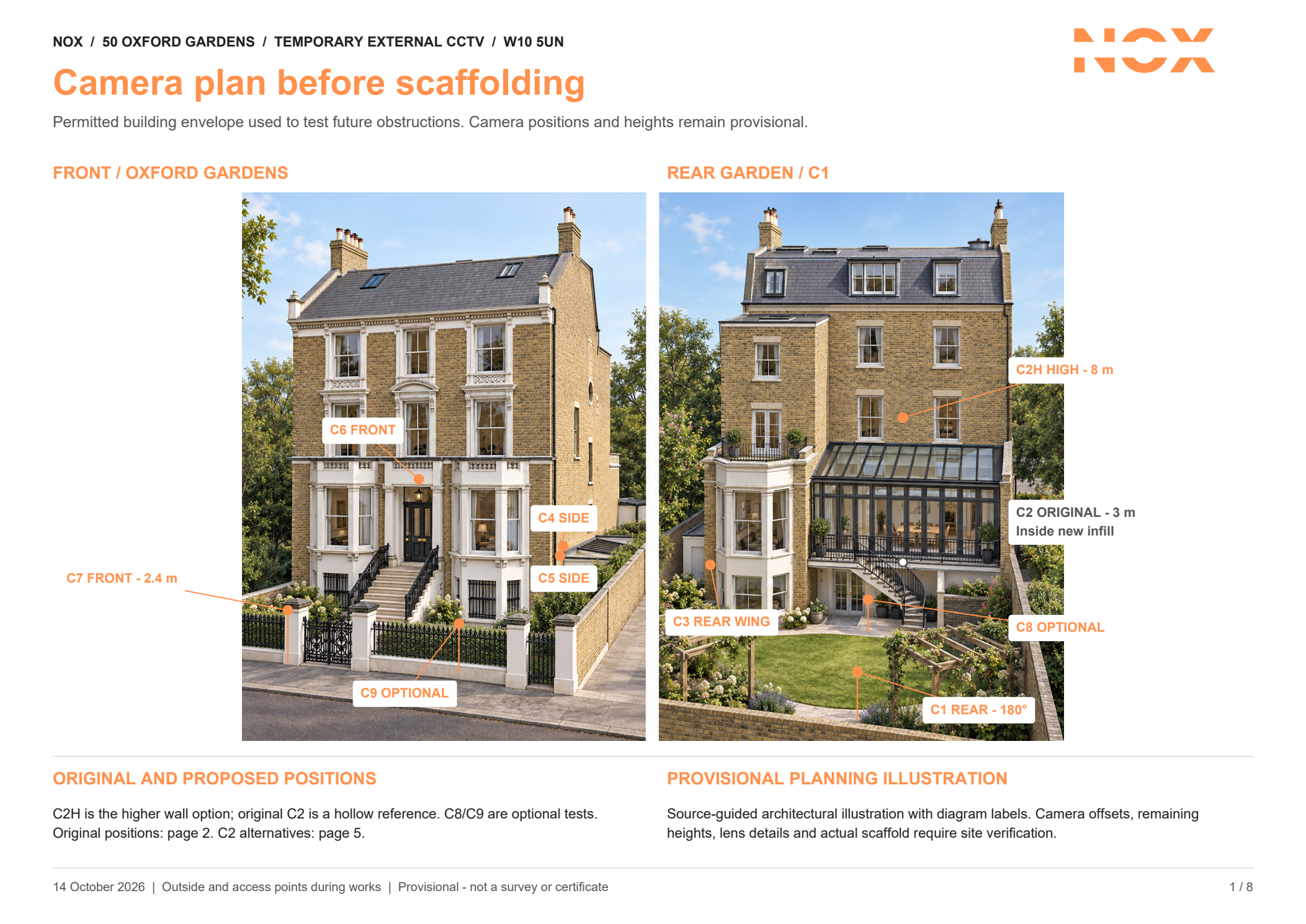

Outside and access points during building work. C2H / C2T replace C2; C6T replaces C6. C8 and C9 are optional additions, subject to a confirmed gap.

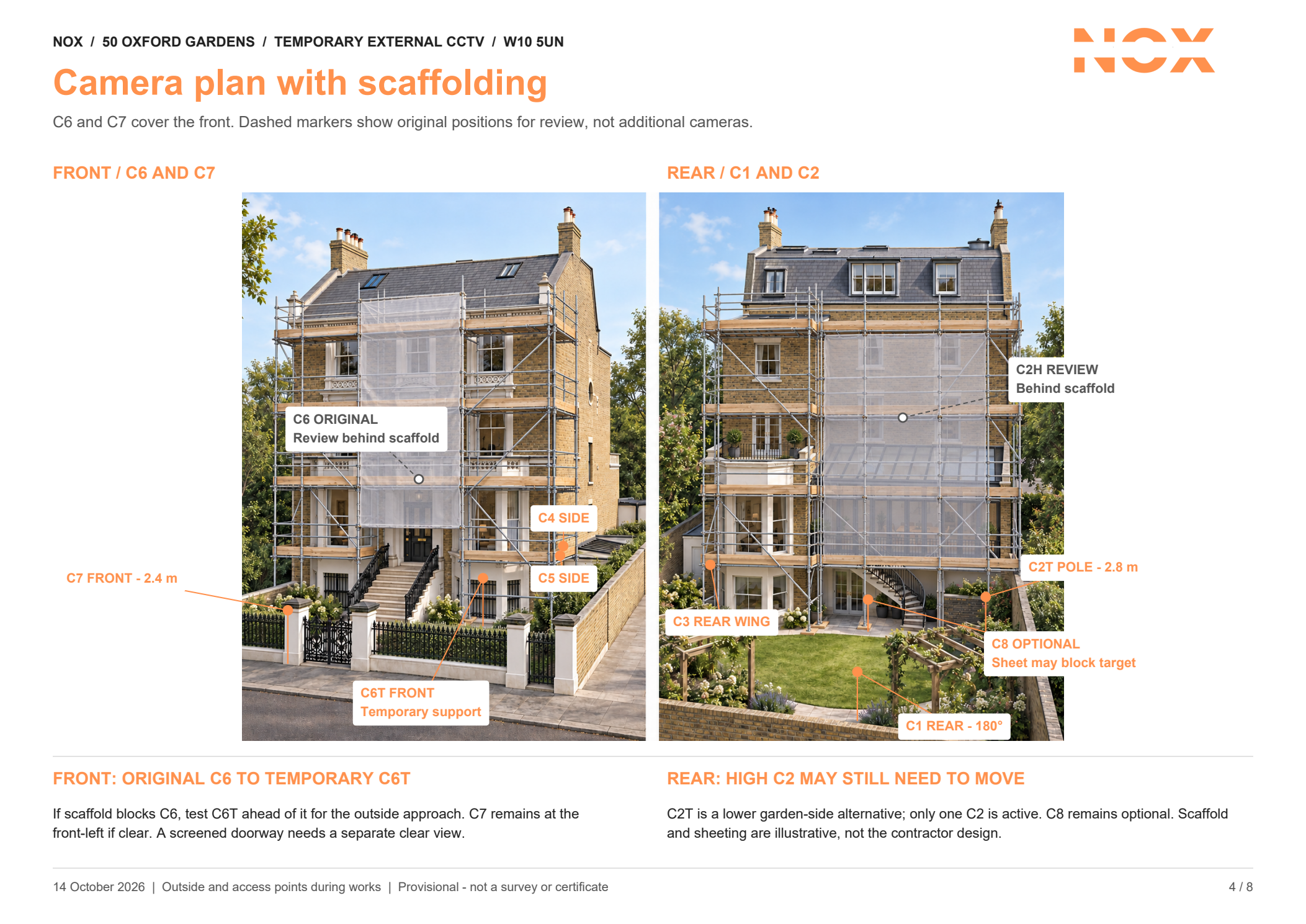

Scaffold positions are illustrative, not the contractor’s design. Verify mounting positions, lens details and day/night coverage on site. A line of sight does not establish identification quality.
Model basis and source drawings
Based on the supplied aerial camera marks, site photographs and Hackett Holland existing and proposed drawings. Architectural finishes are interpretive. This is a proportional planning model, not a measured survey or certified CCTV design. Vegetation is decorative; glazing is treated as screening. Unknown materials, hoarding and construction details are not modelled.
RBKC planning record ↗Architectural drawing set ↗
